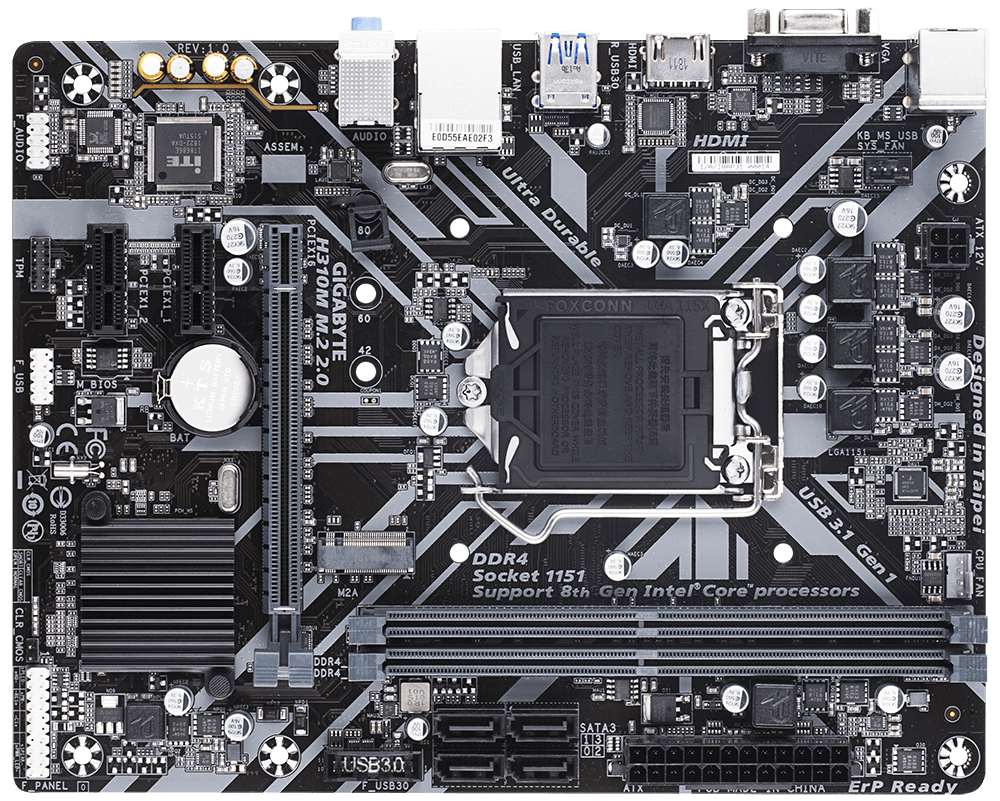

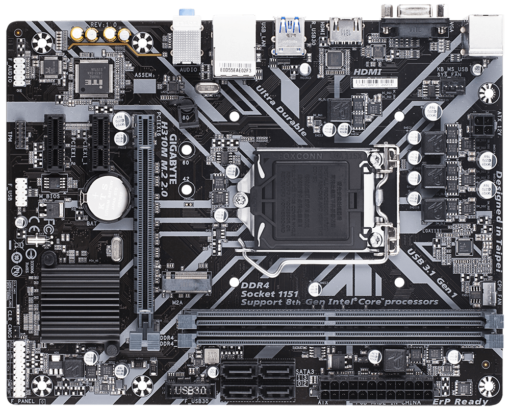

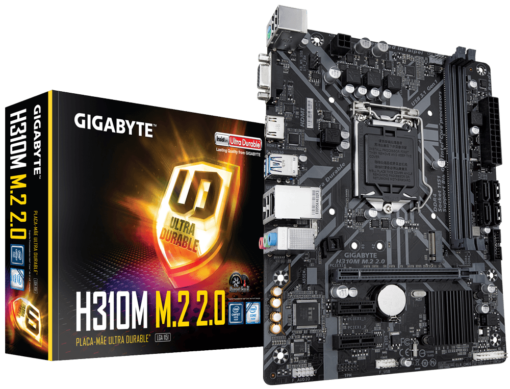

Motherboard Gigabyte H310M M.2 2.0 8th/9th Gen (Intel Chipset)

Brand – Gigabyte

Model – Gigabyte H310M M.2 2.0

CPU Sockets – LGA1151, Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron, 8th/9th Generation processors

Chipset – Intel H310 Express

Memory Type – DDR4, 2666/2400/2133 MHz, Dual Memory Channel, Memory Max. – 32GB

Graphic – Integrated Graphics

PCI Express Slot – 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots,

Storage Interface – 6Gb/s, M.2 Slot – 1 x M.2 Socket 3 (M key, type 2260/2280 SATA and PCIe x2 SSD support)

LAN Chipset – Realtek GbE LAN, LAN Speed (Mbps) – 10/100/1000

Audio Chipset – Realtek ALC887, Audio Channel – 2/4/5.1/7.1-channel, Wi-Fi – No, Bluetooth – No, USB Port – 4 x USB 3.1 Gen 1, 6 x USB 2.0

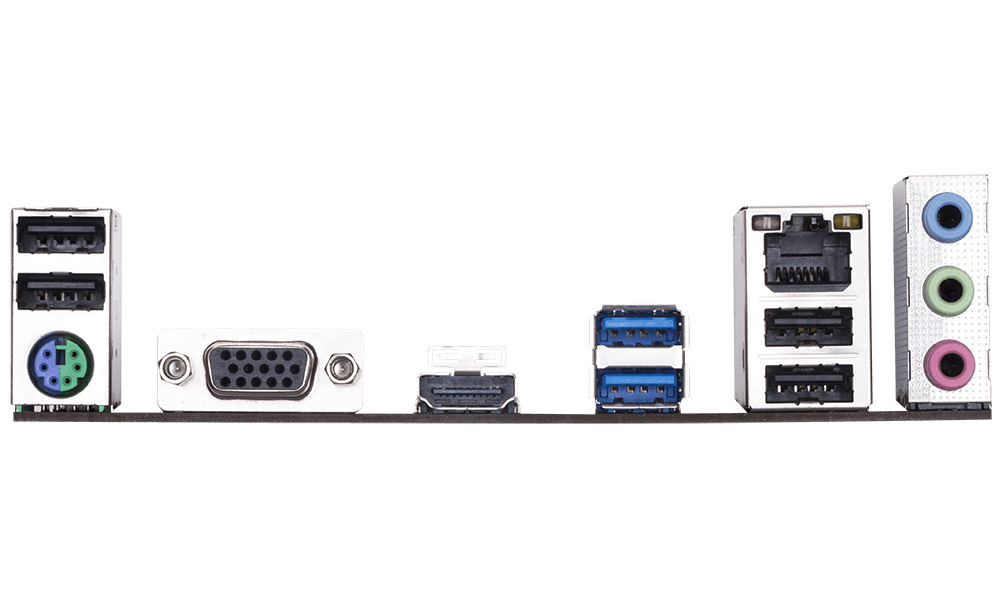

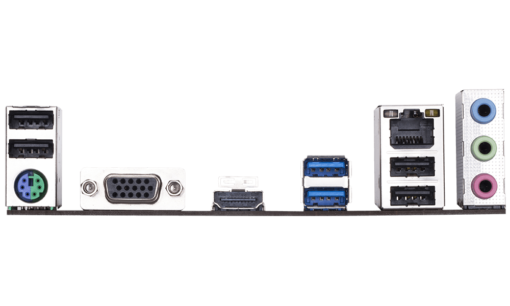

VGA Port – 1, HDMI Port – 1

Dual Channel Non-ECC Unbuffered DDR4

8-Channel HD Audio with High Quality Audio Capacitors

Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

HDMI 1.4, D-Sub Ports for Multiple Display

CEC 2019 Ready, Save Power With a Simple Click

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

All new GIGABYTE™ APP Center, simple and easy use

Warranty – 3 Years
